3d printer controller board MKS GEN V1.3/MKS Gen V1.4 integrated mainboard Ramps1.4/Mega2560 R3 support a4988/DRV8825/TMC2100

60 % of buyers enjoyed this product!

Availability: in stock

TODAY'S DEAL Ends in: 04:36:18

Price: $ 36.99 / piece

Sale Price: $ 35.14 / piece

	45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
	On-time Delivery Guarantees: On-time Delivery 60 days

Sort By

	Top-rated Seller

Most Popular from Category

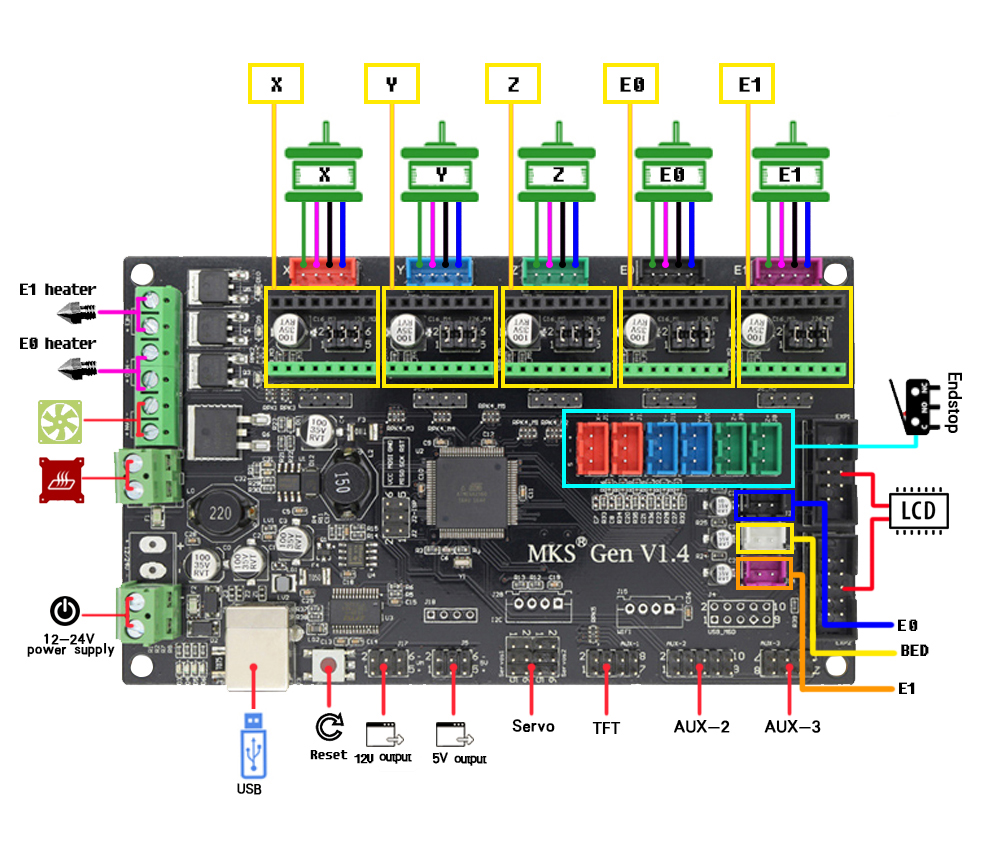

OverviewMKS Gen is a feature rich all-in-one electronics solution for Reprap and other CNC devices.It features an onboard ATmega2560. Its five motor outputs are powered by Pololu pin compatible stepper drivers.The board features a developer friendly expansion port supporting giving access the same as Ramps1.4.MKS Gen is designed to be flexible in the user’s power source availability, allowing any power supply from 12V-24V.MKS Gen retains all interface of ramps1.4.FeaturesArduino MEGA compatible Atmega2560 and FT232 processors are compatible with all RAMPS class firmwareFirmware can use the same configuration as ramps1.4Easy DISPLAY + SD-CARD connector, RepRapDiscount SmartController compatible pin header on boardEasy connect MKS TFT on AUX-1All extra pins broken out the same as ramps1.4(AUX-1,AUX-2,AUX-3,Servos1)3x temperature ADC connectors for thermistorsup to 5 motor driver with easy micro stepping setup (micro switches)4x PWM capable power mosfet outputs with voltage selector for MainPower.(Bed,Extruder0,Extruder1, Fans)4 layers PCB, optimize heat dissipation.3*5V output, 3*12V output interface.6x end stop connectors with power supply Xmin/Xmax/Ymin/Ymax/Zmin/ZmaxRecoverable fuse for short-circuit protection.

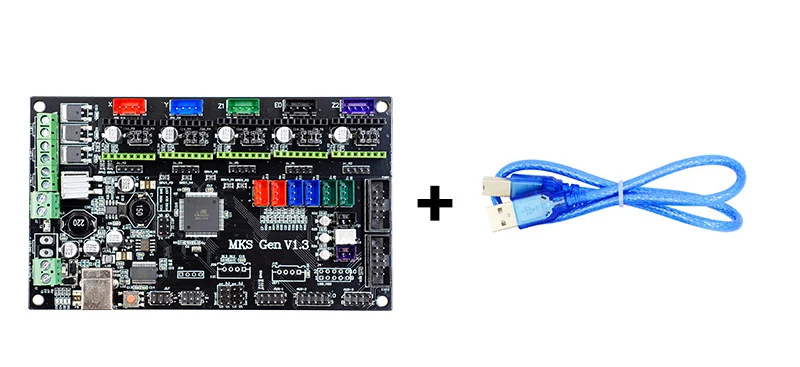

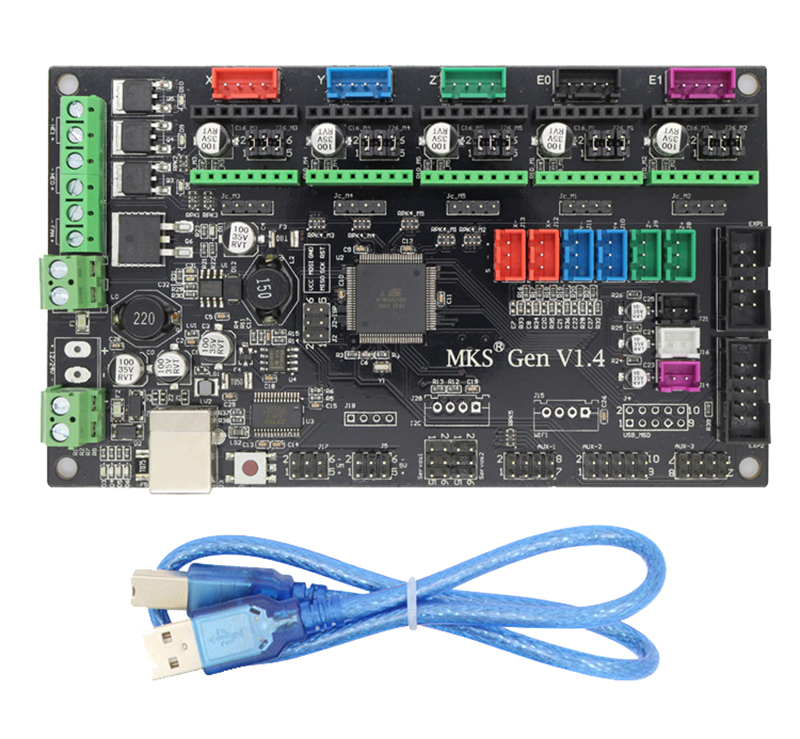

Packaging List: 1set MKS GEN V1.3/MKS GEN V1.4
