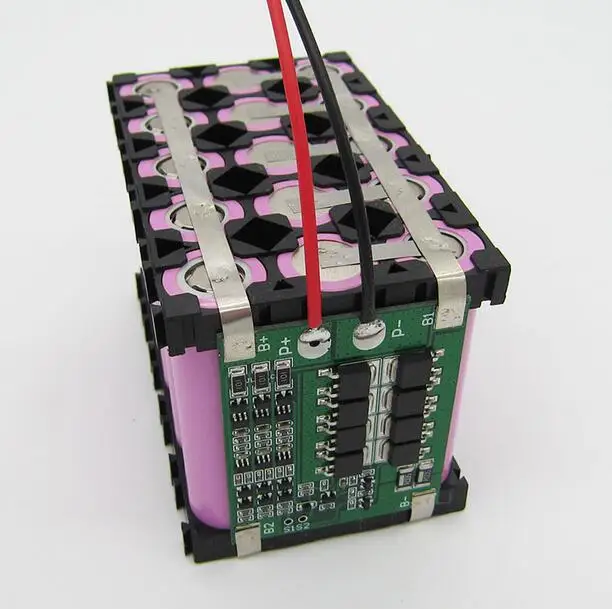

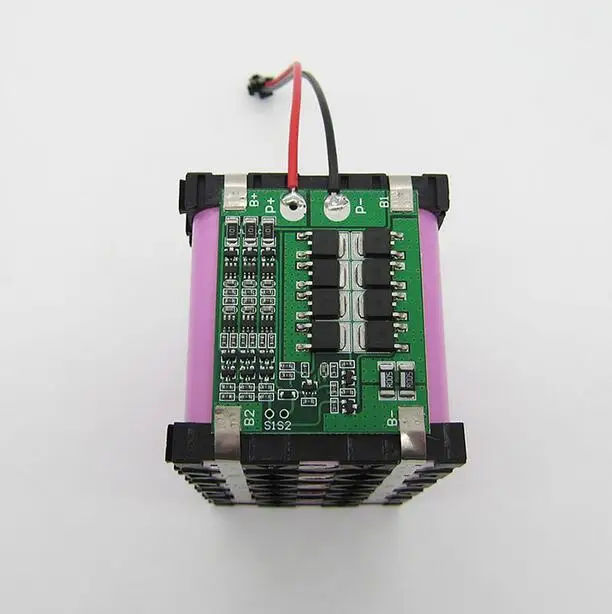

1pcs/lot 3 Series 12V 25A with Balance Li-ion Lithium Battery 18650 Charger Battery Protection Board 11.1V 12.6V

60 % of buyers enjoyed this product!

Availability: in stock

TODAY'S DEAL Ends in: 04:36:18

Price: $ 2.80 / piece

Sale Price: $ 2.52 / piece

	45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
	On-time Delivery Guarantees: On-time Delivery 60 days

Sort By

	Top-rated Seller

Most Popular from Category

3 Series 12V 25A with Balance Li-ion Lithium Battery 18650 Charger Battery Protection Board 11.1V 12.6V

The protection board can not be used for iron ion polymer battery, battery electric drill, electric fishmachine batteries, electric bicycle batteries, 2 series 24V, 1W fisheye LED lamp, for the combination of customer purchase please note!

The described power range is applicable to the following products:

The massager battery group, the LED lamp standby power supply, the 12V electronic product, the solar street lamp battery group, the monitor and the spare power supply, and other products.

Note: the discharge rate above 3A current is more than 3C.

The ratio calculation formula: the battery of 1C multiplex, 2000 capacity equal to the 2AH*1=2A working current.

3C multiple battery, 2000 capacity equal to 2AH*3=6A working current.

In the use of the battery will be heating is the battery ratio is not suitable, this situation must not be used for a long time, the battery will soon be damaged.

Note 1: in strict accordance with the wiring diagram 0V (B-), 3.7V (B1), 7.4V (B2), 11.1V (B+), do not intentionally short!

Note 2: after a good line, it needs to be charged first to have output.

Note 3: when the 3 batteries are connected in series, please ensure that the battery voltage of each group is the same. If it is not the same, please fill each battery in series and use it in series. In the discharge test, the fastest drop of the battery is a differential battery.

For some customers with poor electronic basis, explain: do not mix the battery and the bad battery together. The 3 group battery capacity / internal resistance is closer to the better. (the effect of 2 good batteries, +1 differential battery, the effect of =3 differential battery).

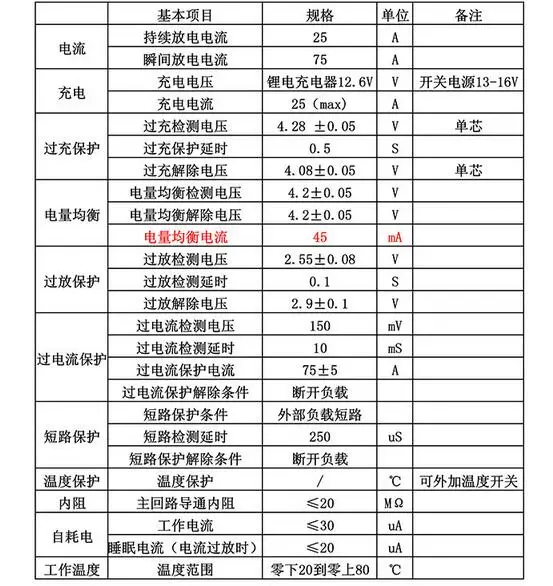

The properties of the lithium-ion battery protector:

Model: HX-3S-FL25A-A overcharge voltage range: 4.25-4.35v + 0.05v

Size: 56454.0mm over voltage range: 2.3-3.0v + 0.05v

Working current: 0-25A working temperature: -40—+50 C

Instantaneous current: 35-40A storage condition: -40– +80 C

Static current: less than 30uA lifetime: more than 30000 hours

Internal resistance: less than 100m Omega short circuit protection: protection, delay self recovery.
